Description

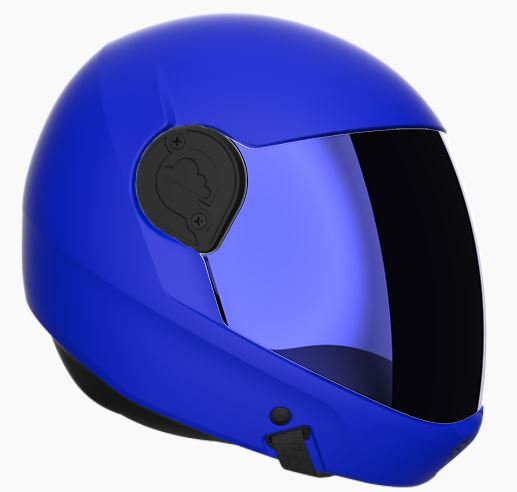

The Cookie G4 skydiving helmet is the latest, must-have, impact-rated, full-face helmet for skydivers and wind tunnel flyers alike. Jumpers are raving about the G4 comfort, quality, easy-of-use, flip-up lens security, colour options, ventilation and protection.

Cookie G4 Skydiving Helmet Features:

• Certified to Skydiving and Wind Tunnel Helmet Standard XP S 72-600
• Same superior viewing area as the G3
• Revamped internal design for a better fit
• Easy fitting of audible altimeters
• Longer shell back offers more coverage for head protection
• More protection around the temple area as the visor mechanism is also thinner
• Visor mechanism is similar in operation to the G3 but designed to offer no extra maintenance
• Very quiet inside as it seals better in all areas and the exterior shape is sleek and smooth by design
• No glue holding the chin curtain in place
• Cool inside due to the ventilation design
• Ventilation control can be adjusted by the user
• One visor fits all G4 helmets sizes
• Includes cloth helmet bag with mesh vent to allow moisture to evaporate



Need more Info?

Here is all you need to know



Liners:

The liner is removable and washable. The helmet liner material has also been tested to ensure that its chemical makeup is safe against the wearers skin. The adjustment of the neck skirt is the same as the G3, although Cookie located the adjustment end in an easier place to facilitate this.



Ventilation:

The internal Expanded Poly Propylene (EPP) foam has been styled to create channels within the helmet to provide ventilation. The top padding also has breathable material to allow the hot air to be drawn into these channels. The chin bar actuators can control the airflow to your mouth area as well as direct to the inner surface of the visor. Two rear ventilation ports allow the evacuation of this hot air from within the helmet.



Audible pockets:

The G4 audible pockets are larger in size than the G3, and provide easier audible access.



Visor:

One visor size fits all of the G4 helmet sizes. Visors have an anti-fog inside and anti-scratch outside. Cookie offers separately available tinted, orange and blue mirror visors. The G4 visor is tested for its optical qualities, has been certified and carries a CE mark. The visors are certified for optics, anti‐fog and resistance to penetration. The tinted and blue mirror visors are tested for the ability to prevent sun glare. The test standard for the sun glare is ISO 12312‐1:2013 and the tinted and blue mirror visors are certified under Filter Category 2 (Good Protection against Sun Glare).

The visor is very simple to remove. Undo the two side plates screws on both sides of the visor. Remove these plates and slide the visor forward.



Side plates:

You can accessorize your G4 helmet with many additional side plate colour and engraving options. The G4 comes standard with black ABS side plates. See the separate ordering link for the G4 Aluminum Side Plates at this link. With a larger foot print, you can add your own custom engraving, available at this link.



Opening your visor:

The G4 visor takes less force to open than the previous G3 visor. The G4 visor is integrated into the helmet for extra rigidity compared to G3 and allows the mechanism to do less work. There is extra redundancy in terms of screws with little or no maintenance needed for the stainless steel springs and screws. Due to the new design, Cookie does not envision that the mechanism will require maintenance, and is expected to last the life of the helmet



Wind tunnel Information:

The Cookie G4 Skydiving helmet is certified to a Skydiving and Wind Tunnel Helmet Standard. To achieve this standard, helmets must pass Impact and Snag Resistance testing. While the G3 Roller mount, FlySight Mount and other mounting options are a good fit against the top surface of the G4, it was not tested according to the XP S 72-600 Standard. Cookie believes that having any extra mount fitted to the G4 helmet would forgo the Snag Test in this standard. It is up to the user to decide whether to add an external mount to the G4 helmet knowing that by doing so, it could affect the way the helmet performs when tested to the XP S 72-600 Standard. Since Cookie knows many users will assume the risk of adding mounts onto the G4, they have included a trap-door cutout in the EPP foam for the user to gain access to the top of the shell to make it easier to add external mounts.

The XPS 72-600 is a Skydiving and Windtunnel Helmet standard used for the G4. The impact testing is the same as the EN966 standard for drop height and conditioning prior to impact (5.47 m/s at roughly 1.6 meters). The impact must be less that 250G. The XPS standard also requires a SNAG test, while the EN966 does not. The XPS requires the chinstrap to be on the exterior of the shell so that a line cannot pass up the inside of the helmet, while the EN966 does not. The EN966 is a Hanggliding helmet standard and also has a penetration test, while the XPS does not require a penetration test. However, Cookie has tested the G4 helmet for penetration according to EN966 and it passes with “great results,” says Cookie.



Outer Shell:

The EPP used in the G4 is a multi-impact foam. The shell is made of High Impact ABS. There is a synergy between the shell and EPP foam to work together to achieve the helmet standard and enable the creation of a helmet with such a small volume compared to other protective helmets. If you sustain a significant impact, Cookie suggests replacing your helmet



Sizing:

The internal liner system for the G4 is more conducive to traditional helmets and sizing does vary from the G3. Cookie is working on youth large and medium sizes for heads 51-53 cm. These smaller youth sizes should be available in the later half of 2019, pending testing. Current sizing is as follows (an image is also shown in the photos section above):



•  Youth Medium (49-50 cm or 19.25-19.75 in)
• Youth Large (51-52 cm or 20 – 20.5 in)
• XS (53-54 cm or 20.5-21.25 in)
• Small (55-56 cm or 21.5-22 in)
• Medium (56-57 cm or 22-22.5 in)
• Large (57-58 cm or 22.5-23.75 in)
• XL (59-60 cm or 23.25-23.5 in)
• 2XL (61-62 cm or 24-24.5 in)



The liners can be swapped within the same shell size. The Small shell size is used for the XS & Small liners, the Medium shell size is used for the Medium and Large liners and the Large shell size is used for the XL and 2XL liners.



How to get your G4 on and off: Please click HERE

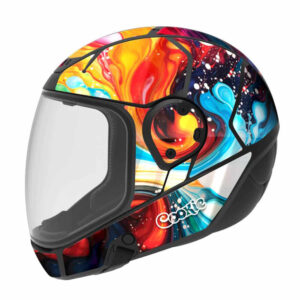

You may also like a Cookie G35.   Click HERE to view

Please be advised

**Special Order**

Estimated delivery 12-14 weeks

Order can not be part shipped. Should one of your items be on back order it is recommended that you place a separate order should you require the remaining items from your order immediately

Additional information

Weight	5 kg
Size	2XL, Large, Medium, Small, XL, XS, Youth Large, Youth Medium
Colour	Charcoal, Dark Blue, Electric Blue, Fluro Pink, Lime Green, Matt Black, Orange, Purple, Red, Royal Blue, Tactical Green, White, Yellow
Extra Lens	Blue, Clear, No Thanks, Orange, Tinted
